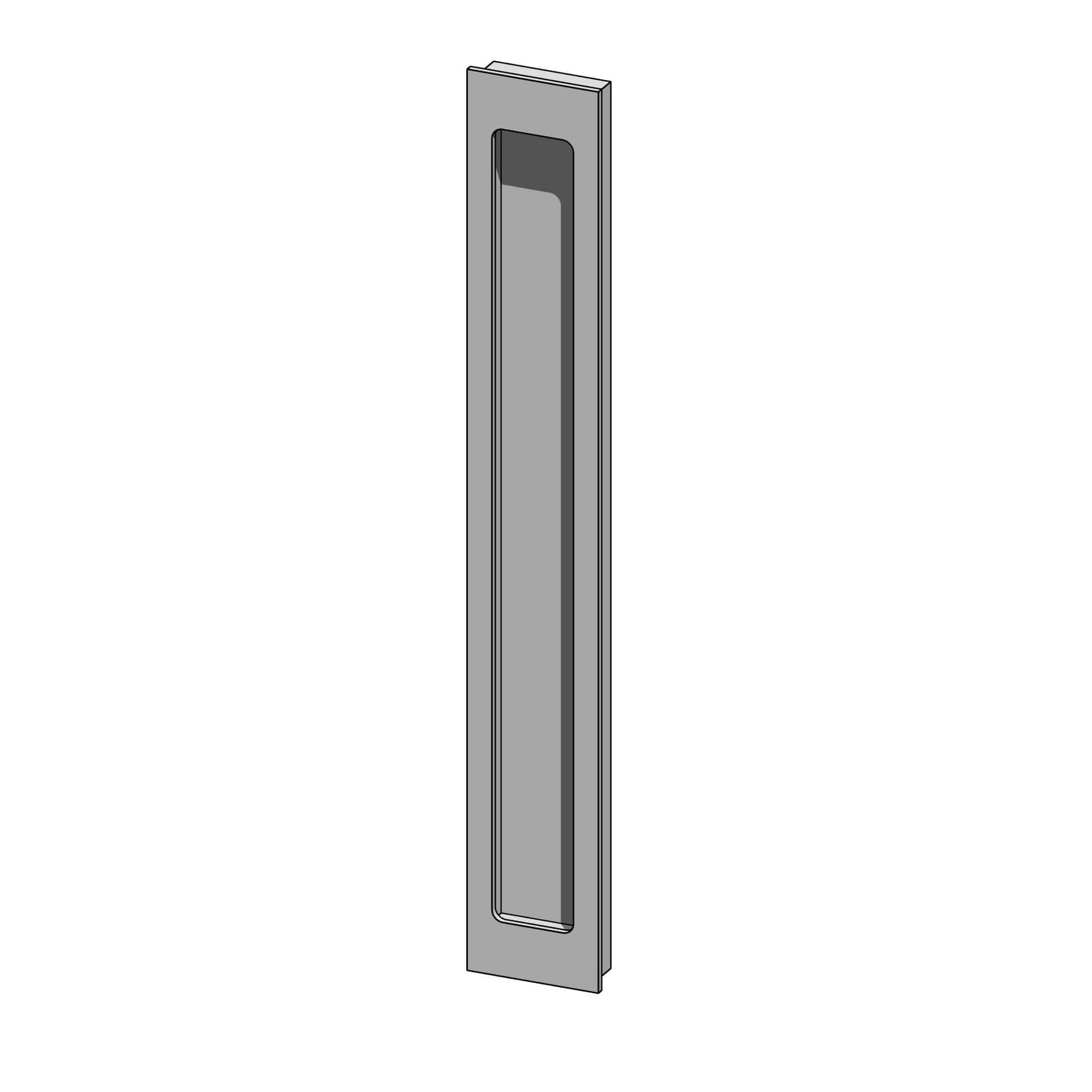

Flush Sliding Door Handle

Flush Sliding Door Handle

$0.00 AUD
$0.00 AUD
Sale Sold out
  • Revit Version 2020
  • Family Version 1.1

A typical Flush Sliding Door Handle with adjustable height, width, depth.

This family is shared, so it can be loaded directly into your project and will appear in the nested hardware container of RevitHQ doors, ready to be swapped into your design without ever editing a family.

See family operation below for details on how to correctly use the Flush Sliding Door Handle family in RevitHQ door panels.

Properties
Operation

Family Type: Face-Based

Family Category: Doors

Custom Object Styles:

  • Hardware

Shared Family: Yes

PBR Texures: Yes

For the handle to sit flush with BIMcraftHQ door panels, enable the 'Handle_VoidVisible' parameter in the properties of BIMcraftHQ door panels.

Then adjust the height and width of the void to match the height and width of your door handle.

This can work for any custom inset door handle you create too.

Version 1 Updates

Version 1.1

  • Updated family and shared parameters for integration with BIMcraftHQ project template.
  • Improved parameter naming and organising.
  • Updated textures to new PBR type with 1024x1024px texture maps.
